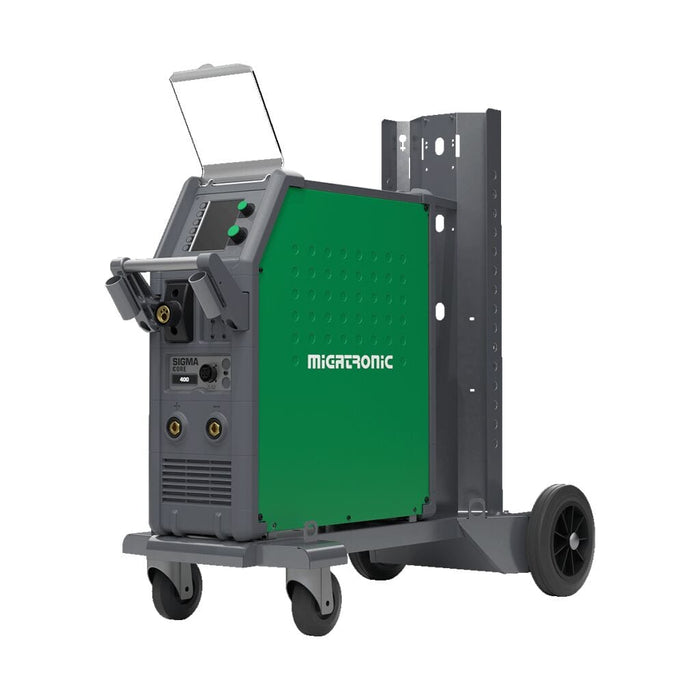

Migatronic Sigma Core 300A Mig Welding Machine Air Cooled
by Migatronic
£2,120.00
High Amps. High simplicity 300A
A simple MIG/MAG welding machine, built for light and heavy steel construction industries. Robust, straightforward and with just the core welding functions.
https://vimeo.com/781472049/a1b582f591?fl=pl&fe=cm
- Uncomplicated and effortless
- Minimising the technology gap
- Great welding performance
Product Code
79542711
Current range (MIG)
15-300 A
Mains voltage +/÷ 15% (50-60Hz)
3 × 400 V
Fuse
16 A
Mains current, effective
11 A
Mains current, max.
15.4 A
Power, 100%
9.0 kVA
Power, max.
10.7 kVA
Open circuit voltage
50-60 V
Open Circuit Power
11 W
Efficiency
0.85
Power factor
0.90
Duty cycle 100% /20°C (MIG), A/%/V
290/28.5
Duty cycle 100% /40°C (MIG), A/%V
220/25
Duty cycle 60% /40°C (MIG), A/%V
240/26
Duty cycle max. /40°C (MIG), A/%/V
300/25/29
Application class
S/CE
Protection class
IP 23S
Standards
IEC60974-1. -10 Cl. A
Dimensions C
700 × 260 × 735 mm (H x W x L)
Dimensions S
454 × 260 × 735 mm (H x W x L)
Weight C
36.9kg
Weight S
26kg
Warranty
2 Years
