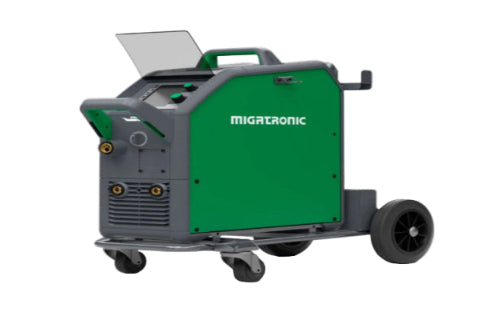

Migatronic Sigma One 270 Mig Welding Machine With Pulse
by Migatronic
£2,780.00
One purpose. Weld.
A robust MIG/MAG inverter welding machine. Designed for light and heavy use in manufacturing companies of all sizes. Powerful, simple and reliable.
- High duty cycle - weld for many hours
- Produce high-quality welds
- Fast welding with pulse
- For continuous welding or occational use
Current range (MIG), A
15-270
Mains voltage +/÷ 15% (50-60Hz), V
3 × 400
Fuse, A
10/16
Mains current, effective, A
8.5
Mains current, max., A
13.2
Power, 100%, kVA
5.9
Power, max., kVA
9.1
Open circuit voltage, V
50-60
Efficiency, %
88
Power factor
0.90
Duty cycle 100% /20°C (MIG), A/%/V
200 / 4.2
Duty cycle max. /20°C (MIG), A/%/V
270 / 28 / 27.5
Duty cycle 100% /40°C (MIG), A/%V
200 / 24.2
Duty cycle 60% /40°C (MIG), A/%V
210 / 24.5
Duty cycle max. /40°C (MIG), A/%/V
270 / 28 / 27.5
Application class
S/CE
Protection class
IP 23S
Standards
IEC60974-1. IEC60974-5. IEC60974-10 Cl. A
Dimensions C (H x W x L), mm
675x250x238
Weight C, kg
32.5
