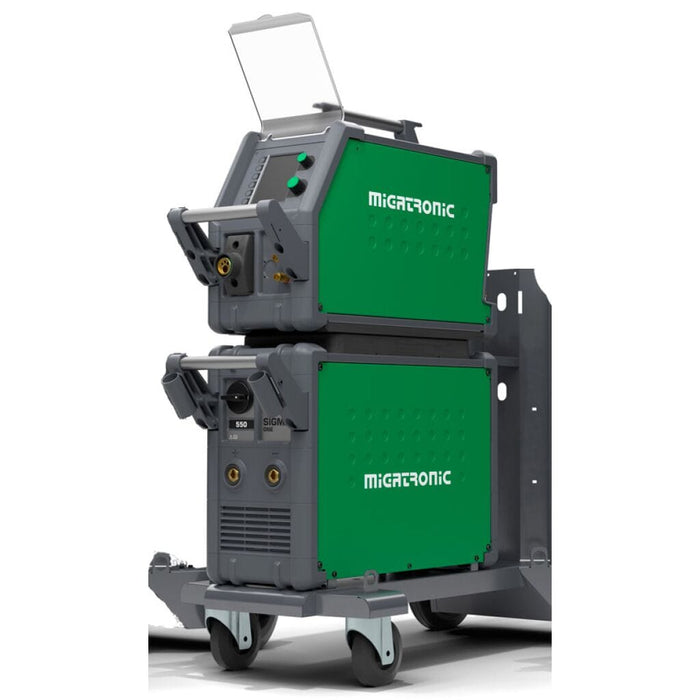

Migatronic Sigma One 300 Synergic Dc Separate Mig Welder
by Migatronic
£4,150.00
One purpose. Weld. 300A
A robust MIG/MAG inverter welding machine. Designed for light and heavy use in manufacturing companies of all sizes. Powerful, simple and reliable.
- High duty cycle - weld for many hours
- Produce high-quality welds
- Fast welding with pulse
- For continuous welding or occational use
https://vimeo.com/674831079/4de50d591e?fl=pl&fe=ti
Current range (MIG)
A 15-300
Mains voltage +/÷ 15% (50-60Hz), V
3 × 400
Fuse, A
16
Mains current, effective, A
11
Mains current, max., A
15.4
Power, 100%, kVA
9.0
Power, max., kVA
10.7
Open circuit voltage, V
50-60
Efficiency
0.85
Power factor
0.90
Duty cycle 100% /20°C (MIG), A/%/V
290/28.5
Duty cycle 100% /40°C (MIG), A/%V
220/25
Duty cycle 60% /40°C (MIG), A/%V
240/26
Duty cycle max. /40°C (MIG), A/%/V
300/25/29
Application class
S/CE
Protection class
IP 23S
Standards
IEC60974-1. -10 Cl. A
Dimensions
C (H x W x L), mm 700 × 260 × 735
Weight
26Kg
Warranty
2 years (You can extend to 5 years with registration)
MWF 32 wire feeder
Wire feed speed, m/min
0.5-30.0
Wire spool diameter mm
300
Duty cycle 100% /40°C, A/%
430/100
Torch connection
EURO
Protection class
IP 23
Standards
IEC60974-5. -10 CL. A
Dimensions
(H x W x L), mm 457x260x672.5
Weight, kg
11.6
